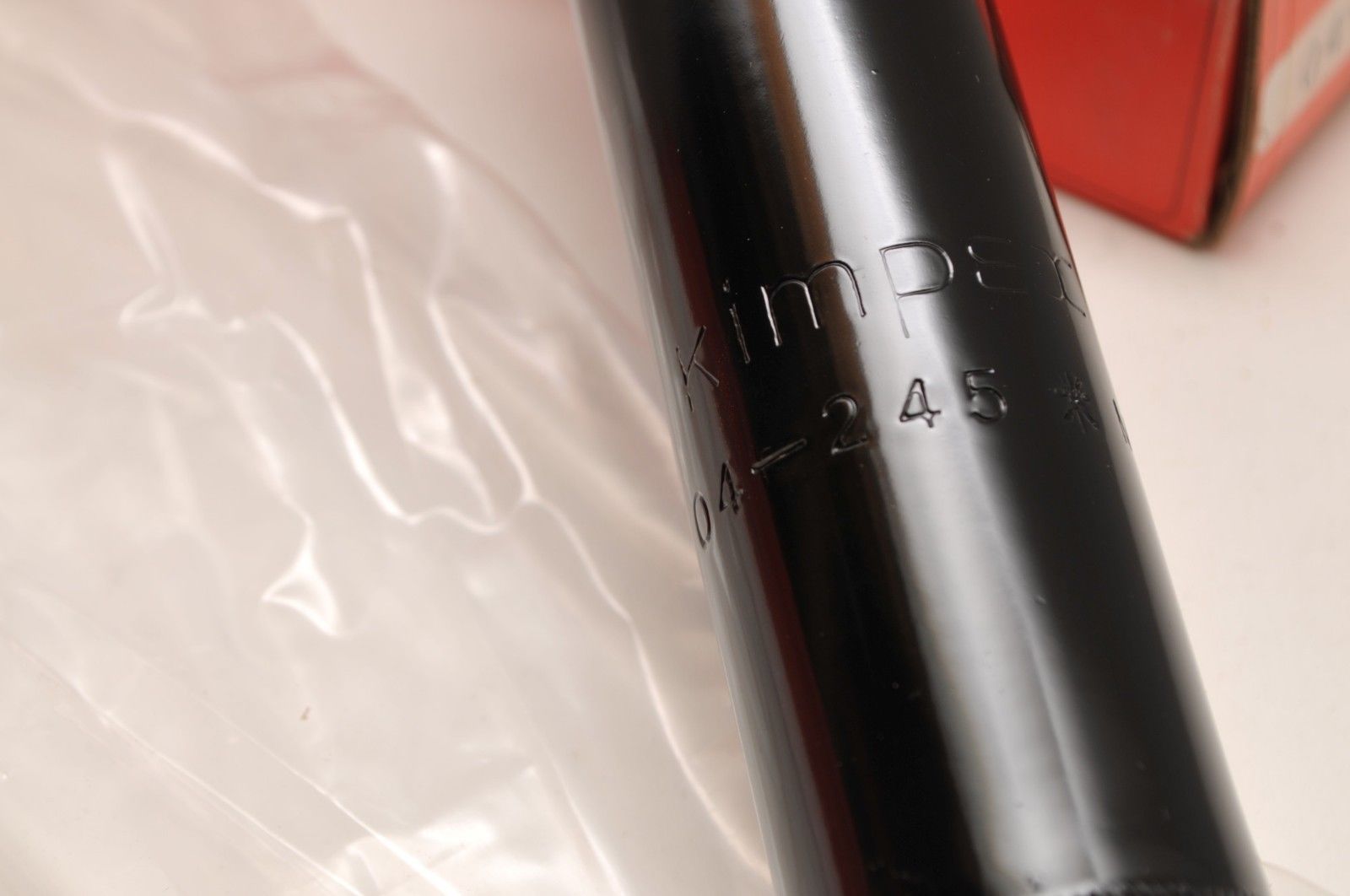

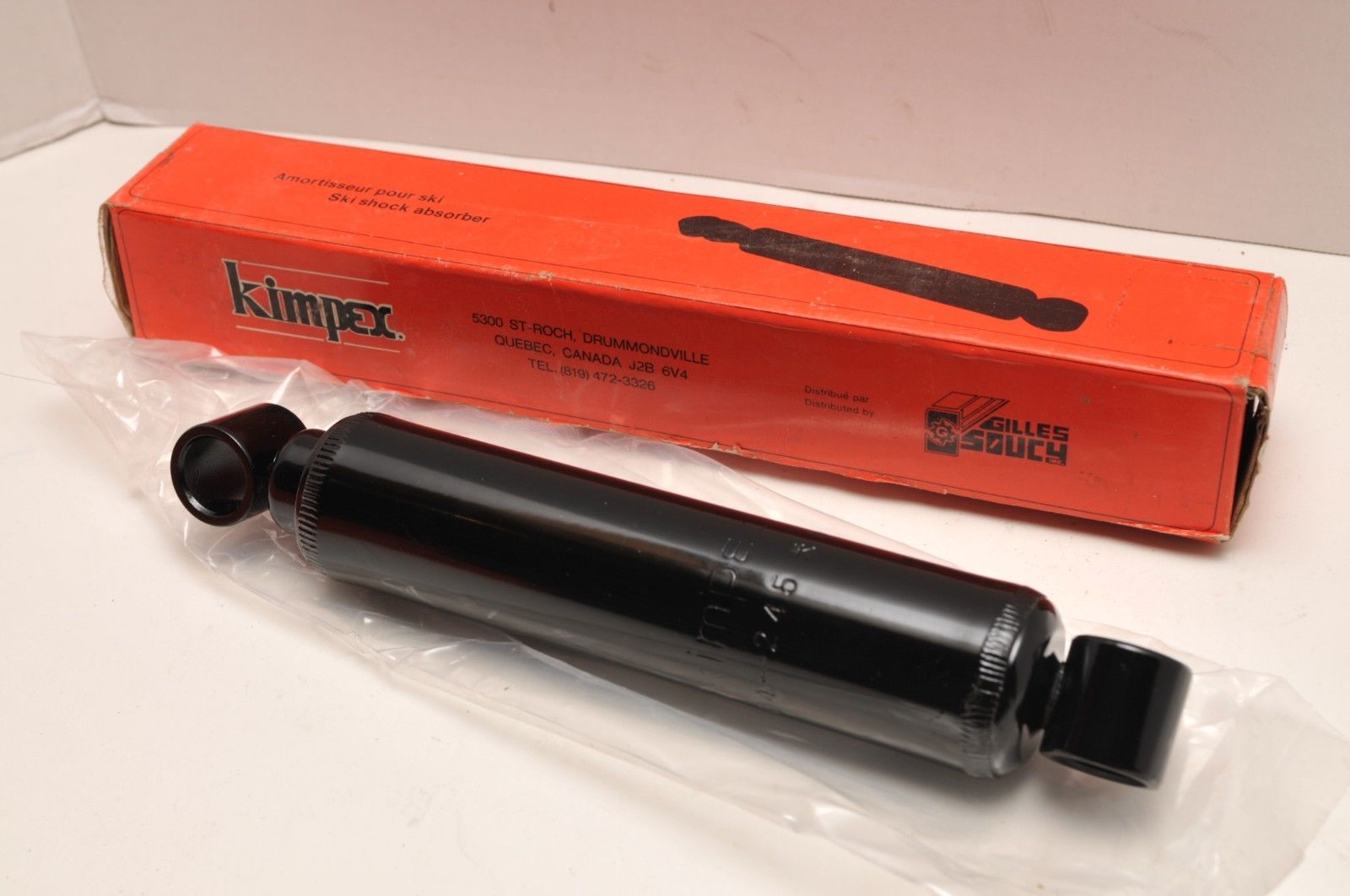

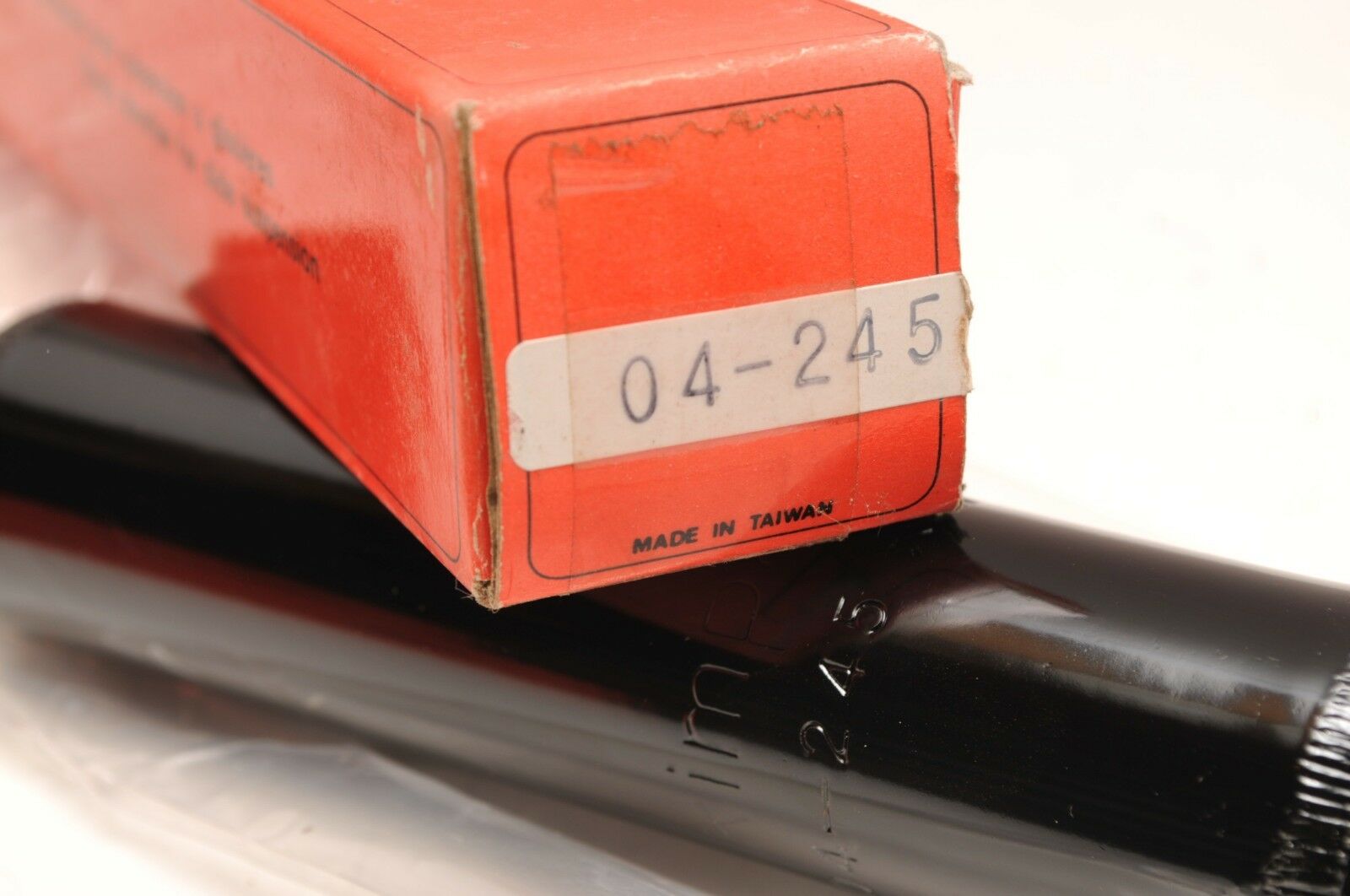

KIMPEX PART
SHOCK ABSORBER, Hydraulic
Part Number: 04-245
Replaces OEM: Arctic Cat 0114-124
Replacement shocks for slide suspensions meet or exceed OEM specifications for air/oil (hydraulic) shocks
All are black painted and sold each
Accepts all the original retainers and spring where applicable - not included
Re-use the original rubber bushing and steel sleeve
Will fit many other brands of snowmobiles by matching the dimensions
Sold Each
Compressed Length 7.375 in.
Extended Length 11.437 in.
Eyelet Width - Bottom .875 in.
Eyelet Width - Top .875 in.
Inside Diameter - Bottom Eyelet 5/8 in.
Inside Diameter - Top Eyelet 5/8 in.
Position Rear
Type Shock Absorber
Suggested Fitments:
1981 Arctic Cat El Tigre 5000
1980 Arctic Cat El Tigre 5000
1979 Arctic Cat El Tigre 5000
1978 Arctic Cat El Tigre 5000
1984 Arctic Cat El Tigre 6000
1981 Arctic Cat El Tigre 6000
1980 Arctic Cat El Tigre 6000
1979 Arctic Cat El Tigre 6000
1978 Arctic Cat El Tigre 6000
1980 Arctic Cat Jag 2000
1979 Arctic Cat Jag 2000
1980 Arctic Cat Jag 3000 F/A
1979 Arctic Cat Jag 3000 F/A
1980 Arctic Cat Jag 3000 F/C
1979 Arctic Cat Jag 3000 F/C
1981 Arctic Cat Jag 4000
1981 Arctic Cat Jag 4000 L/T
1986 Arctic Cat Jag 440
1985 Arctic Cat Jag 440
1980 Arctic Cat Lynx 2000S
1979 Arctic Cat Lynx 2000S
1978 Arctic Cat Lynx 2000S
1977 Arctic Cat Lynx 2000S
1980 Arctic Cat Lynx 2000T
1979 Arctic Cat Lynx 2000T
1978 Arctic Cat Lynx 2000T
1977 Arctic Cat Lynx 2000T
1985 Arctic Cat Pantera 440
1981 Arctic Cat Pantera 500
1980 Arctic Cat Pantera 500
1985 Arctic Cat Panther 440
1984 Arctic Cat Panther 440
1981 Arctic Cat Panther 440
1980 Arctic Cat Panther 440
1986 Arctic Cat Panther 500
1979 Arctic Cat Panther 5000
1978 Arctic Cat Panther 5000
1977 Arctic Cat Panther 5000
1976 Arctic Cat Panther 5000
