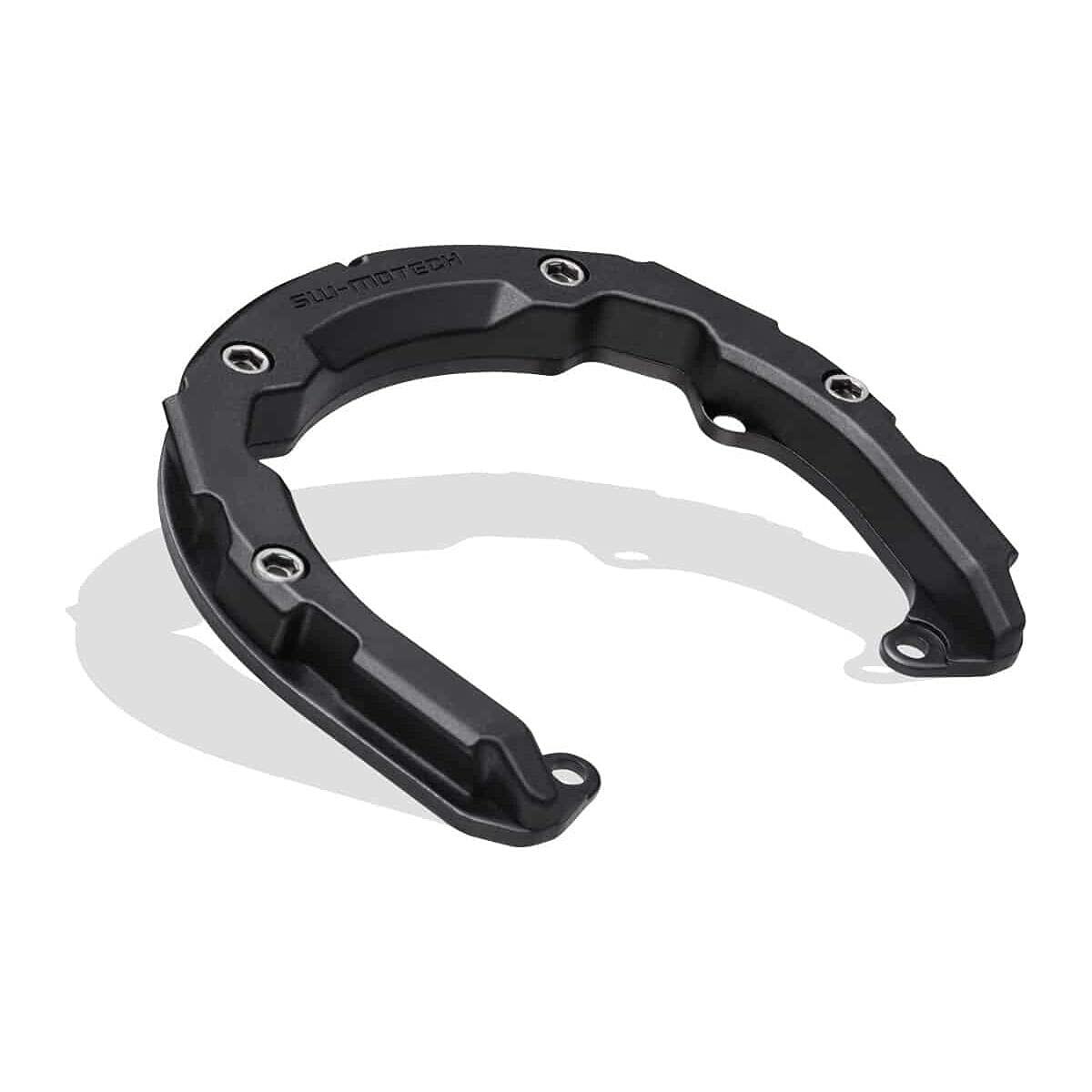

Quick Lock Pro tank ring.
Allows the extremely easy attachment of Quick-Lock PRO tank backpacks from SW-Motech without contact with the paint.
The proven quick-lock locking mechanism of the tank rings is very easy to use thanks to the magnetic guide aid of the Fidlock technology.
Details:
- Is additionally required with any Quick-Lock PRO tank backpack.
- For quick assembly/disassembly of the Quick-Lock tank backpack
- Magnetic guide in the tank ring and in the counterpart for easy attachment - the power of the magnets supports the attachment of the tank backpack.
- The mechanical locking mechanism reliably secures the tank backpack.
- The quick release with the pull strap allows you to remove it with one hand movement.
- No contact of the tank backpack with the vehicle paint (the appropriate choice of the tank backpack shape is required).
- Can also be used on aluminium and plastic tanks.
- Made of fibreglass-reinforced polyamide.
- Allows for easy refuelling.
- For attaching to the fuel cap.
- Is usually attached via the screws of the tank outer ring.
- On some models there are special solutions that are also not necessarily positioned on the fuel cap - see mounting instructions and pictures.
- which fits your bike DB
- Some tank rings also indicate the number of screw points, these also fit many older models when their fuel cap is attached with the appropriate number of screws.
Dimensions (approx. ):
Height: 12 mm (for some models, supplied adaptor parts increase this)
Outer / inner diameter: 110/86 mm
Weight without mounting parts: 65 g
Certification:
Tank backpack attachments do not need to be approved, therefore do not require any certification, certificate or ABE.
FEATURES
- For quick assembly/disassembly of the Quick-Lock tank backpack in seconds
- Magnetic guide in the tank ring and in the counterpart for easy attachment
- Is also required for every Quick-Lock PRO tank backpack
- No contact of the tank bag with the vehicle paint (if the tank bag shape is suitable)
- Allows easy refuelling
