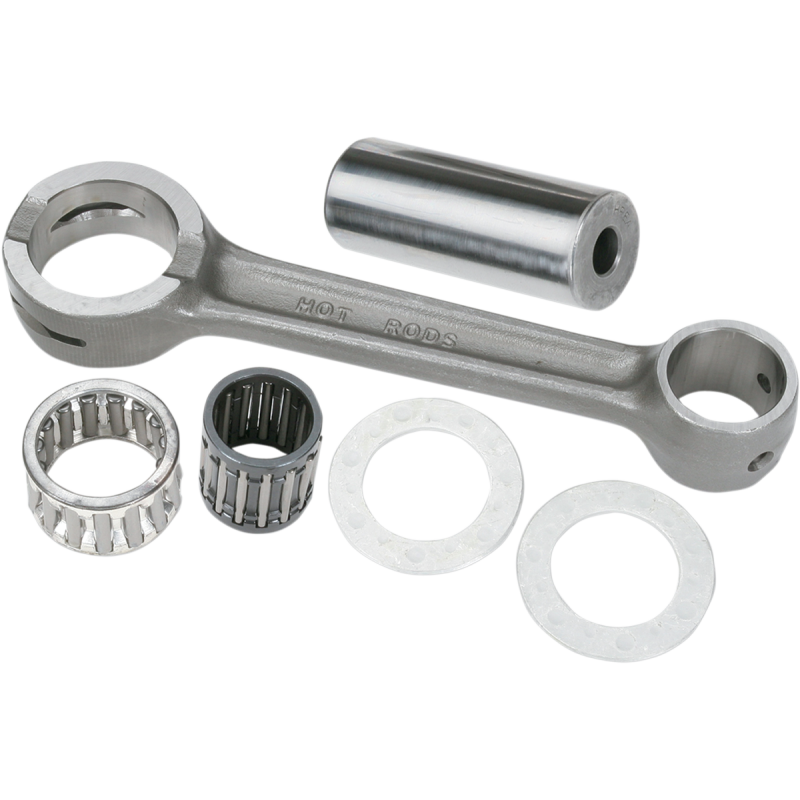

85-04 KX500 CONNECTING RODS
- Heavy-duty OE replacement connecting rods
- Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
- Certified 8620 AISI steel provides superior strength
- Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
- Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
- Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
- Feature the latest in caged needle roller bearing designs for high rpm longevity
- Made in the USA
- Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
- Compatible with Hot Rods and OE crankshafts
- Double honing produces an ultra-round bearing surface for reliability at high rpm
8148
